About Leviton

Leviton Manufacturing is North America’s leading manufacturer of electrical wiring devices, data center connectivity solutions and lighting energy management systems. Founded at the turn of the 20th century, we’ve grown over the past 100 years to become the preeminent leader in our industry. Today our product portfolio consists of over 25,000 devices and systems used in homes, businesses and industry.

With our heritage of innovation, excellence and setting the pace of progress in our industry, we have a lot to be proud of: 90% of homes across North America use one or more devices we make. Builders, electrical contractors, homeowners, specifiers, architects and engineers rank our products # 1 in brand preference. And, our design patents consistently rate as having significant technological value and impact on other companies in our industry.

Today we’re poised for even greater success as we extend our presence across the globe. That’s because no matter where you’re situated around the globe, and no matter what your application environment or market focus, Leviton is the smart choice for today’s rapidly changing world.

New Products

Leviton Samsung SmartThings WiFi Control System

With the free SmartThings app and a Hub, you can turn any home into a smart home by adding connected smart devices including many Z-Wave and Lumina RF options from Leviton.  As needs change, easily customize SmartThings to work in new and different ways. Just set rules for what you’d like the smart devices to do while asleep, awake, gone, or back home, and SmartThings will do the rest.

Brochure

Spec Sheet

Leviton SmartlockPro AFCI/GFCI Receptacle

The Leviton SmartlockPro AFCI/GFCI Receptacle offers an effective alternative to a Dual Function breaker and features the convenience of localized test and reset. It provides clear visual indication of status making it intuitive for users to assess various conditions such as power availability and GFCI self-test status. The device also distinguishes between a trip caused by a ground fault and a trip caused by an arc fault.

PDF

Leviton Lumina™ RF Decora® 0-10V Wall Switch Dimmer

Introducing the Lumina™ RF Decora® 0-10V Wall Switch Dimmer (ZSD07), a line-powered component of the Lumina RF Solutions product line. This device allows dimming of any 0-10V controlled load. Use as a standalone dimmer or part of the Lumina RF Eco-System. Lumina RF products ensure energy savings in new construction and retrofits and the Lumina Gateway functions as an energy management coordinator, allowing for wireless automated control of loads via remote control from a tablet or smartphone app.

PDF

Leviton Switched Power Distribution Units

Leviton Switched Power Distribution Units provide the solution to many power management problems common in IT environments, including unauthorized use of power outlets, equipment locked up, in-rush current, overloaded circuits, and the need for remote access to power outlets.

PDF

Leviton OmniTouch 7 Touchscreen for use with Lumina Gateway

The new capacitive touch, glass front Touchscreen from Leviton Security & Automation. Features a 7” diagonal viewing area at 800×480 resolution. Designed for the Lumina Gateway energy management automation systems.

PDF

Leviton Metered Power Distribution Units

Leviton Metered Power Distribution Units provide the reliable power distribution required for high-demand applications. The local LED display provides input current monitoring, giving on-site users the ability to monitor aggregate current draw as equipment is connected to each unit, preventing overload situations in high-density environments.

PDF

Leviton Decora® Digital Dimmer and Digital Switch with Bluetooth® Technology

The next generation of lighting control technology is here with the new Leviton Decora® Digital Dimmer and Digital Switch with Bluetooth® technology. These innovative devices work using the Decora Digital Dimmer & Timer App that can be easily downloaded to smartphones or tablets and paired to the Leviton Dimmer or Switch using Bluetooth technology.

PDF

Leviton 9864-LED Ceiling Occupancy Sensor

Leviton has expanded its line of Ceiling Lamp holders for closets and closed spaces to include this new LED Ceiling Occupancy Sensor model. With the phase-out of incandescent lamps, LED lighting is today’s energy-efficient alternative to incandescent fixtures as well as the popular alternative to CFL fixtures. Our new LED Ceiling Occupancy Sensor incorporates today’s most desired features and meets NFPA 70 and NEC Section 410.16, C (1 )requirements.

PDF

Leviton EZ-MAX Plus Wi-Fi Card

EZ-MAX® Plus Wi-Fi Cards provide wireless communication capabilities for remote access to EZ-MAX Plus Relay Control Panels. The convenient remote access allows for programming and scheduling either on-site or in the field via a PC, allowing building or facility managers to view and/or update an individual building or an entire campus’s schedule.

PDF

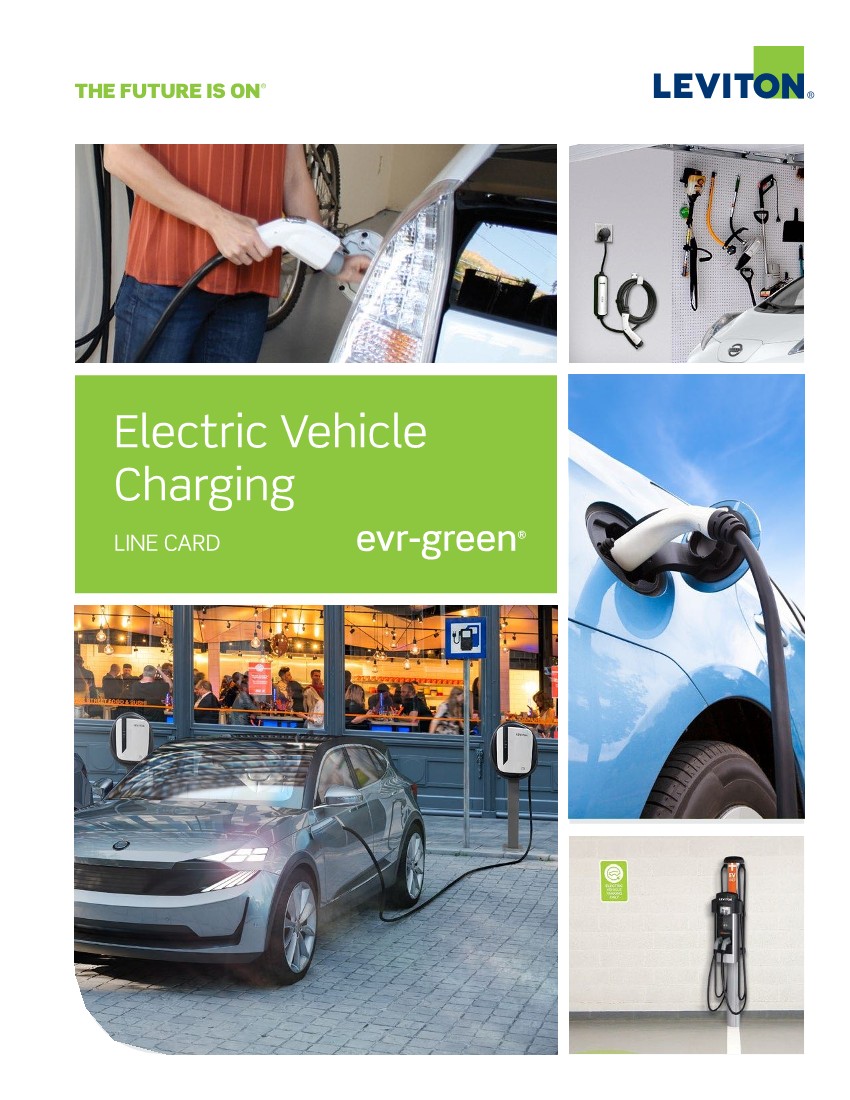

Leviton Electric Vehicle Charging Equipment

Evr-Green e30+ Line CardLeviton offers a complete solution for residential, commercial and public plug-in electric vehicle (PEV) charging: the Evr-Green® line of electrical vehicle supply equipment (EVSE) and accessories. Our Evr-Green products are compliant with all industry standards and compatible with all major auto manufacturers’ electric vehicles (SAE J1772™ compliant).

PDF

Leviton 9864 LED Closet Light with Occupancy Sensor

Leviton has expanded its line of Ceiling Lampholders for closets and closed spaces to include this new LED Ceiling Occupancy Sensor model. Our new LED Ceiling Occupancy Sensor incorporates today’smost desired features and meets NFPA 70 and NEC Section 410.16, C (1)requirements.

PDF

Leviton Wetguard Device Line with Stainless Steel Boxes

Leviton’s successful Wetguard line consists of a comprehensive array of plugs, connectors, inlets, outlets, covers and an FD Box system made from corrosion-resistant PVC. The line has been expanded to include stainless steel FS/FD boxes, designed specifically for the mounting of the Leviton Wetguard single-gang devices. Used together, Wetguard stainless steel boxes and covers/devices provide a watertight connection.

PDF

Leviton OSFHW Wet Location External High Bay Occupancy Sensor

The Fixture Mount PIR High-Bay Wet Location External Occupancy Sensor (OSFHW) is ideal for damp or wet locations such as supermarket meat departments, food processing plants, parking garages and other wash down, high ceiling applications. The OSFHW features a IP65 rating for indoor and outdoor locations and is designed to withstand dust and pressure washers.

PDF

Leviton OSF20 Wet Location Integral Luminaire Occupancy Sensor

The Fixture Mount PIR Wet Location Integral Luminaire Occupancy Sensor (OSF20) is designed to be mounted directly into a luminaire and is ideal for indoor or outdoor wash down locations such as food processing plants, warehouses and manufacturing plants. The OSF20 offers a sensor and relay in one device.

PDF

Leviton Omnistat3 RC500 Wireless Thermostat for Energy Efficiency

Designed for hotel rooms and lodging areas, the Omnistat3 Hospitality Thermostat boasts a compact form factor with a clean capacitive touch interface. The Omnistat3 is designed to achieve Title 24 compliance to accurately detect if a hospitality room is occupied, adjusting heat and cool setpoints based on vacancy or occupancy, and to control room loads or circuits if the room is vacant or occupied.

PDF

Leviton Lumina Gateway Wireless Control for Home or Office

The Lumina Gateway properly serves the small commercial market with an easy-to-install yet comprehensive wireless automation system. Remote access and programming for the integrator from anywhere. The wireless Lumina Gateway eco-system makes it easy to configure automated lighting, temperatures, heavy-duty loads, small appliances, window coverings, pumps and more. Features simplified time schedules and sensor based actions plus free remote access for multiple business locations.

Lumina Spec Sheet
Lumina Linecard

Leviton HB011 Fixture Mount High/Low Bay Dimming Sensor

Leviton’s HB011 PIR Fixture Mount High Bay/Low Bay Dimming Occupancy Sensor with Integrated Photocell and Two Interchangeable Lenses provides 0-10V control. The HB011 is easy to program and set for desired 1-100% continuous dimming levels during daylighting. It is also engineered to meet and exceed all standards requirements of ASHRAE Standard 90.1 2010.

PDF

Leviton Evr-Green Mini Electric Vehicle Charging Station

Introducing the next generation of the Evr-Green® line of Electric Vehicle Supply Equipment (EVSE), the Evr-Green Mini electric vehicle charging station. Our new charging station delivers nearly 5 kW of power and offers a more compact, affordable, easy to use – easy to install solution to electric vehicle charging. The Evr-Green Mini was designed to be the smallest wall-mounted EV charging station available in North America and delivers a maximum of 20 electric vehicle miles per hour.

PDF

Leviton AFCI/Switch Combination Device

Leviton’s combination AFCI/Switch provides AFCI protection plus the convenience of a single pole switch to control the lights. This combination is ideal for kitchens, family rooms, bedrooms, dining rooms and hallways. The AFCI Switch may be used for new circuits or modifications to existing circuits where a switch is the first outlet on a branch circuit.

PDF

Leviton Extra Heavy Duty Self Test GFCI Receptacles

Leviton now offers Extra-Heavy Duty Industrial & Hospital Grade Self-Test GFCI Receptacles.

Underwriters Laboratories (UL) standards now require newly manufactured GFCIs to be auto-monitoring (self-testing) by conducting an internal test to confirm that protected power is available. Our complete line of Class A self-test GFCIs periodically conduct an automatic internal test to confirm that protected power is available.

PDF

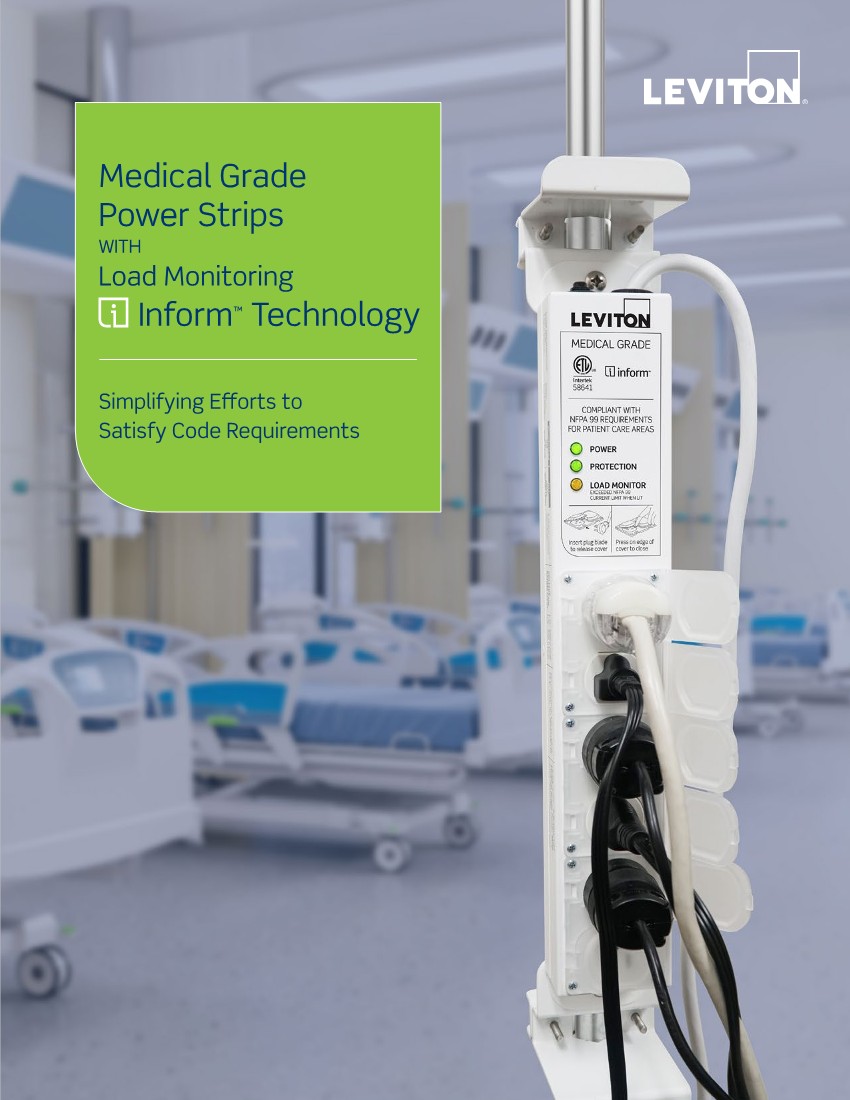

Leviton Medical Grade Power Strips

Leviton’s family of medical-grade power strips are designed explicitly for use in health care facilities, including patient care areas as defined by NEC (2011) Article 517. These devices also satisfy electrical safety requirements specified in NFPA 99 (2012): Health Care Facilities Code, allowing facility managers to ensure that their facilities are compliant with this safety regulation.

Spec Sheet
Health Care Guide

Leviton EMH+ Meter with Data Acquisition Hub

The Leviton VerifEye™ EMH+ combines an onboard revenue-grade power meter, a Leviton Data Acquisition HUB and web server in a flexible all-in-one package. This simple and effective energy solution can be used to meet energy codes and mandates and is ideal for new construction and commercial buildings. Installation is simple as the device draws power from the connected voltage sense lines – no external power supply required!

PDF

Leviton Integrated Room Control Kit-Lighting and Receptacle Control

The Leviton Integrated Room Control (IRC) combines single room occupancy sensing, daylight harvesting, 0-10V dimming, Partial ON, Partial OFF and demand response capabilities into a single, easily installed package. IRC features several methods of Ladderless Commissioning™ for install-and-forget convenience, including the AutoCal™ feature which automatically sets the maximum light output levels and calculates light loss factor for accurate lumen maintenance.

PDF

Leviton ASHRAE Standard 90.1 2010 Solutions

ASHRAE Standard 90.1 2010 provides the minimum requirements for energy-efficient design of most buildings (excluding low-rise residential buildings). ASHRAE standards define the minimum energy efficiency requirements for new construction, as well as new systems installed in existing buildings. Leviton offers a wide spectrum of lighting and energy control solutions to bring any project up to standard. This reference guide provides examples of common applications, ASHRAE 90.1 code compliance considerations, and Leviton solutions to meet the functionality and standards compliance needs of the space.

PDF

Leviton SmartLockPro Self-Test GFCI

In response to the revised standard UL 943, GFCI manufacturers must stop producing their current GFCIs and only manufacture the new self-test models as of the end of June 2015. What this means is That you will notice a gradual transition in the market to self-test models by all manufacturers of GFCIs after that date. All Class A UL listed residential and commercial grade wallbox mounted GFCI receptacles as well as GFCI circuit breakers are affected by this change. Panel mount, in-line and portable GFCIs will not be affected. The new Leviton Self-Test GFCIs have been modified to meet the new UL standard. The devices have the same dimensions and install the same way as the current SmartlockPro® Slim GFCIs.

PDF

Leviton Powerswitch Stainless Steel Disconnect

Our new 30 Amp, Non-Fused Safety Disconnect Switch features a Type 304, Non-Magnetic Stainless Steel enclosure for added resistance against bacterial growth and chemical corrosion. The metallic enclosure is ideal for use in areas requiring heavy washdown such as food and beverage processing, factories and plants, and other abusive industrial environments.

PDF

Leviton 902MHz Wireless Self-Powered Solutions

NEW Leviton LevNet RF™ 902 MHz Wireless Self-Powered Solutions offer superior reliability with a more robust frequency for RF communications. With no wires to pull and no placement limitations, LevNet RF wireless self-powered solutions can be installed quickly and with minimal disruption for new construction projects or retrofitting at virtually any phase of the project.

PDF

Leviton ASHRAE 90.1-2010 Receptacle Control Solutions

Energy codes now require Receptacle Control or Plug Load Control. Both ASHRAE 90.1-2010 and California Title 24 2013 require controlled receptacles to have the same automatic shutoff function as lighting using either occupancy sensing or schedule based control. Plug-in strips and devices cannot be used for code compliance. Title 24 and NEC also require the controlled receptacles to be permanently marked to differentiate them from uncontrolled receptacles.

Control Options
Integrated Room Control

Leviton Antimicrobial Devices And Wall Plates

Antimicrobial devices from Leviton are manufactured by incorporating silver ions (Ag+) as the antimicrobial agent in the construction material. This material has been tested to show a consistent

[3 log (>99.9%)] microbial reduction rate against a broad range of bacteria pursuant to the JIS Z 2801:2000 test protocol. Silver ions embedded in the material substrate are released via ambient moisture and enter the cell membrane. Silver ions destabilize the cell membrane, stop respiration and inhibit cell division whilst blocking the replication of DNA.

PDF

Leviton Rhino-Hide NEMA Wiring Devices

Leviton Rhino-Hide NEMA wiring devices are the only connectors in this class to carry a true
watertight/submersible rating, making them suitable for the wettest environments, including those where plugs and connectors may be subject to immersion in mud or water. The high-performance TPV material used in plugs and connectors off ers superior resistance (as compared with ordinary rubber) to water, chemicals and UV exposure for long-lasting performance.

PDF

Leviton OBC AFCI “Arc Fault” Receptacles

OBC AFCI Receptacles address the dangers associated with both types of potentially hazardous arcing – parallel and series arcing. Similar to GFCIs, AFCI receptacles provide feed-through protection and are able to detect downstream parallel and series arc faults as well as upstream series arc-faults. Utilizing an AFCI receptacle offers homeowners the benefit of localized TEST and RESET.

PDF

Leviton ODC Line Voltage Integrated Occupancy Sensors

The Leviton ODC Series Occupancy sensors combines line voltage occupancy sensors and photocells into a self-contained unit. The integrated design alleviates the need for separate power pack and occupancy sensor wiring making it a low-cost, efficient energy solution for new construction and retrofits. For true Daylight Harvesting applications, an integrated photocell provides consistent Daylight Design Levels by actively switching the connected load(s) ON and OFF in response to available natural light to maximize energy savings. Single and dual relay sensors are available.

Single Relay
Dual Relay

Leviton ODC0P-D0W Low Voltage 1-10V Dimming Daylight Sensor

The Leviton ODC0P-D0W is an interior low voltage photocell capable of continually dimming between 1-10VDC based on the amount of natural light contribution. It is a low-power, high-sensitivity mini-daylight harvesting system for precise monitoring of either task or ambient light levels.

PDF

Leviton OPP20 Power Pack for Low Voltage Occ Sensors

The OPP20 is the latest addition to the Leviton Power Pack family, delivering a wide array of switching solutions in a single unit. Submitted for stringent testing, this robust Power Pack line is designed to deliver unmatched performance. The OPP20 line features robust and reliable mechanical latching relays, exclusive fail-safe circuitry, daylight harvesting, bi-level switching, and is configurable for energy code requirements (CA Title 24, ASHRAE 90.1, NYC LL48). Exclusive Leviton High Inrush Stability (H.I.S.™) circuitry is specifically designed to handle high inrush electronic ballast loads and offer unmatched durability and service.

PDF

Leviton Evr-Green® 4000 Level 2 Public Use Charging Stations

Evr-Green® 4000 Level 2 Public Use Charging Stations provide corporations, municipalities and utilities industry leading EV charging solutions. Integrating design and functionality with superior reliability and durability, the Evr-Green charging stations are ideal for workplace, commercial, or outdoor public charging. They are available in bollard and wall mount configurations for easy installation anywhere.

PDF

Leviton EMH+ Meter Hub Combination With Current Transformers

The Leviton VerifEye™ EMH+ combines an onboard revenue-grade power meter, a Leviton Data Acquisition HUB and web server in a flexible all-in-one package. This simple and effective energy solution can be used to meet energy codes and mandates and is ideal for new construction and commercial buildings.

PDF

Leviton Decora Rocker Slide Universal Dimmers

Leviton Decora Rocker Slide Universal Dimmers provide smooth, slide-action, full-range dimming for incandescent, dimmable LEDs, dimmable CFLs, halogen and magnetic low voltage (MLV) loads. The Decora Fan Speed Control offers 1.5 amps of quiet fan speed control with user adjustable low, medium and high settings. Quiet fan speed controls are ideal for libraries, home offices, bedrooms and any area where ceiling fan noise could become distracting.

PDF

Leviton IPHS5 Humidity Sensor and Fan Control

The new Leviton Humidity Sensor and Fan Control automatically detects excess humidity in a room and activates the ventilation fan to lessen con¬densation which helps reduce mold and mildew. The sensor uses a Microprocessor combined with state-of-the-art digital sensing technology to continuously monitor and manage humidity levels in areas of the home prone to condensation and mildew.

PDF

Leviton Series 3500 Ethernet Meter

The Leviton Series 3500 Meter is a highly accurate, 0.5% accuracy class kWh/demand meter. Offering a full range of electrical parameter measurement—kVA and kVAR, PF, per phase voltage, etc., this meter is ideally suited to commercial and industrial applications where advanced communications protocols are demanded.

PDF

Leviton VerifEye™ Series 8000 Multiple Point Meters

Leviton VerifEye™ Series 8000 Multiple Point Meters are designed to meter multi-tenant office buildings, medium-sized retail, institutional, multi-tenant residential and other high density applications. VerifEye Series 8000 meters provide twenty-four meter elements that can be configured as any combination of 1 phase, 2 phase or 3 phase meters or monitors.

PDF

Leviton SmartlockPro Self-Test GFCIs Meet UL943

The new Leviton Self-Test GFCIs have been modified to meet the new UL 943 standard. The devices have the same dimensions and install the same way as the current SmartlockPro® Slim GFCIs. An auto-monitoring function that will allow for periodic automatic testing (self-test) of the GFCI device and its ability to respond to a ground fault has been added.

PDF

Leviton Hospital Grade 4-in-1 Receptacles

Hospital Grade 4-in-1 Receptacles provide a simple transition in retrofit applications to comply with new receptacle requirements in health care facilities. These devices allow you to increase the number of receptacles in your facility without having to pull new wires. Both the 2012 Edition of the NFPA 99 and the 2014 Edition of the National Electrical Code are applying new patient care room definitions for the minimum number of receptacles required.

PDF
